High Precise Cast Iron Double Support Woodworking Machine Sliding Table Saw

FOB Reference Price:Get Latest Price
$2,800.00 - $3,200.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
ZD400T
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Table Panel Saw
Use:
Woodworking
Style:
Horizontal
Place of Origin:
Shandong, China
Brand Name:
QDZD
Usage:
Wood Cutting
Voltage:
Customized
Power(W):
5.5kw
Dimension(L*W*H):
3250*3150*900mm
Weight:
1100kg
Certification:
CE Certificate
Warranty:
1 Year
Dimension of sliding table:
3200*415mm
Gross cut capacity:
3200mm
Tilting saw group:
0-45°
Diameter of main saw blade:
400mm
Max cutting height:
125mm
Speed of main saw spindle:
3000/4000/5000r.p.m
Main spindle diameter:
30mm
Diameter of scoring saw blade:
120mm
Speed of scoring saw spindle:
8000r.p.m
Scoring saw motor power:
1.1kw
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 15 To be negotiated
Video Description
Product Description
Main Features:
Our sliding table saw mainly applys to processing all kinds of density boards,shaving boards,artificial board,ABS boards,PVC boards,organic glass plates and solid wood and others with wood structure and similar hardness.
The sliding table is made of high strength extruded aluminum alloy,and it is high in strength and won't bent.
With oxidation treatment,the sliding table surface is beautiful and hardness.
The body is welded with heavy-duty steel and with special heat treatment,better stability and lower noise.
SPECIFICATIONS FOR SLIDING TABLE SAW ZD400T
Model
ZD400T
Main spindle diameter
30mm
Dimension of sliding table
3200*415mm
Diameter of scoring saw blade
120mm
Gross cut capacity
3200mm
Speed of scoring saw spindle
8000r.p.m
Width of cut between saw blade and rip fence
1250mm
Scoring saw motor power
1.1kw
Tilting saw group
0-45°
Scoring saw spindle diameter
22mm
Diameter of main saw blade
400mm
Lifting of saw blade
Electrical lifting
Max cutting height(90°)
125mm
cutting degree readout
Digital readout
Speed of main saw spindle
3000/4000/5000r.p.m
weight
1100kgs
Main saw motor power
5.5kw
Overall dimension
3250*3150*900mm
Detailed Images

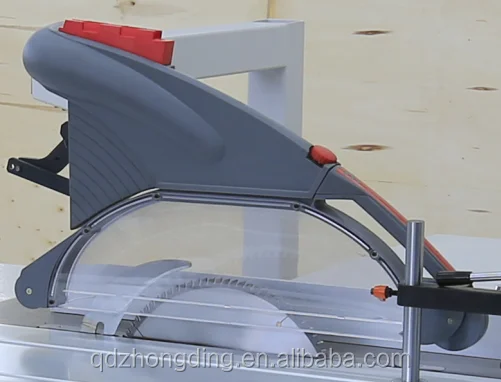

Big Dust Hood can avoid sawdust dropping on the working table,saving cleaning times and it also provide a bigger working space than those smaller dust hood.


Rip fence ,mm level with fine-tuning function,exclusive design,supporting 150 * 50 by the mold column, cutting 1300 plate, other manufacture use 1350 * 30,40 / 45, cutting 1160 board.




Altendorf brand motor which makes the machine more powerful and steady.






independent electric box,dustproof fault, fire, motor with overload overheating protection, low pressure, overload overheating is not easy to burn the motor, wire super GB configuration, good protection.


Certifications
Contact US

WELCOME TO CONTCT US:

Whatspp/wechat:+8618363917191


Fax:+86-532-8518-0358


Address:Huangdao,district of Qingdao,China

Packing & Delivery


Multiple protection :

Form Paper Inside and Wood Box Outside
Solid and Prevent Bump
FAQ

Q1.About the MOQ

A1.1 set, and we are OEM,

I will give you the competitive price better than market.


Q2.May I buy a sample?

A2. Of course ,sample order is welcome.

Q3.How can I place a order?

A3.Just give me your nice inquiry,I will do my best to assist you.

Q4. If I want cheaper quality, can you produce?

A4.Yes, just send us your quality details, such as the material, what cheaper parts instead etc, we will do that as your request and calculate the price.

Q5. If I order big quantity, what's the good price?


A5.Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
