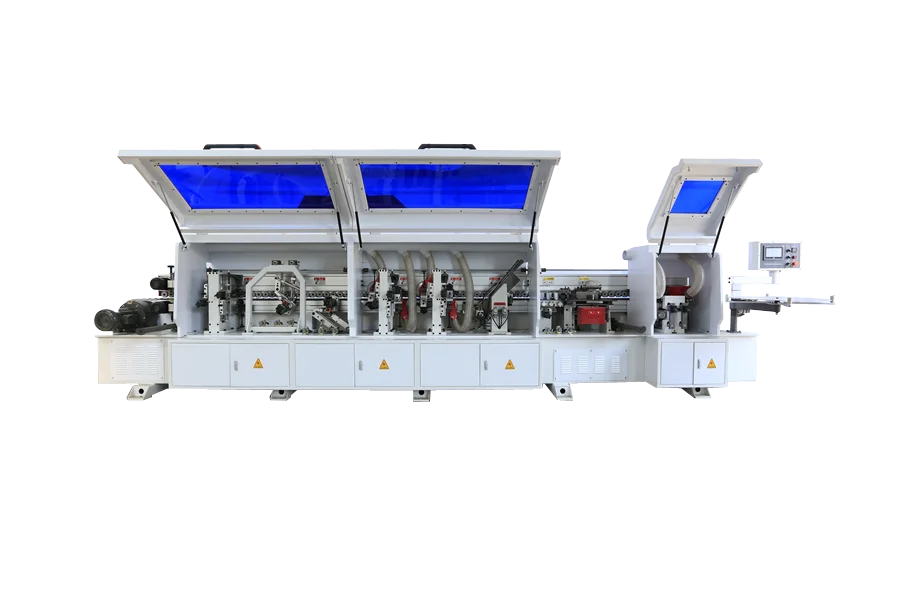

Best Selling Multiple Functions Automatic Edge Banding Machine

FOB Reference Price:Get Latest Price
$13,000.00 - $16,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
MF450C
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
QDZD
Banding Tape Thickness:
0.4-3mm
Banding Tape Width:
12-65mm
Workpiece Thickness:
10-60mm
Workpiece Length:
>=100mm
Workpiece Width:
>=50mm
Heating Power:
1.8kw
Feeding Motor Power:
3.7kw
Glue Spreading Motor Power:
0.75kw
Feeding speed:
10-23m/min
Air Pressure:
0.8Mpa
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
500 Set/Sets per Month edge banding machine for sale
Packaging & Delivery
Packaging Details
Packaging Details: plywood box
Port
Qingdao
Company Profile
Qingdao Zhoongding Machinery Co.,Ltd is a leading company of specializing in manufacturing and exporting woodworking machine,and we are able to offer professional woodworking machine to customers.Our company has professional technology,full range of testing lines and pipelining,and four professional production lines of woodworking machine.
Our products are mainly included Precise panel saw,Edge Banding Machine,Multiple Drilling Machine,Press Machine etc.,which have been exported to lots of countries and regions,such as Europe,Russia,Southeast Asia,Middle East,North American,Australia.We have established complete sales system.Our company takes the principle of quality first and customer foremost,and we are strict with quality control.Meanwhile,we develop and manufacture new products positively,and provide profect pre-sale and after-sale services.Our company also got ISO9001 international system certificate and CE security certificate.

Product Description
Banding Tape Thickness
0.4-3mm
Rough Trimming Motor Power
0.75kw*2
Banding Tape Width
12-65mm
Fine Trimming Motor Power
0.75kw*2
Workpiece Thickness
10-60mm
Corner Rounding Motor Power
0.5*2
Workpiece Length
>=100mm
Polishing Motor Power
0.37kw*2
Workpiece width
>=50mm
Feeding Speed
10-23m/min
Heating Power
1.8kw
Air Pressure
0.8Mpa
Feeding Motor Power
3.7kw
Overall Dimension
5670*850*1520mm
Glue Spreading Motor Power
0.75kw
Packing Size
5700*880*1580mm
End Trimming Motor Power
0.5kw*2
N.W.
2300kgs
G.W.
2450kgs

Main Function:


Gluing---End Trimming---Rough Trimming---Fine Trimming---Corner Trimming---Scraping---Buffing

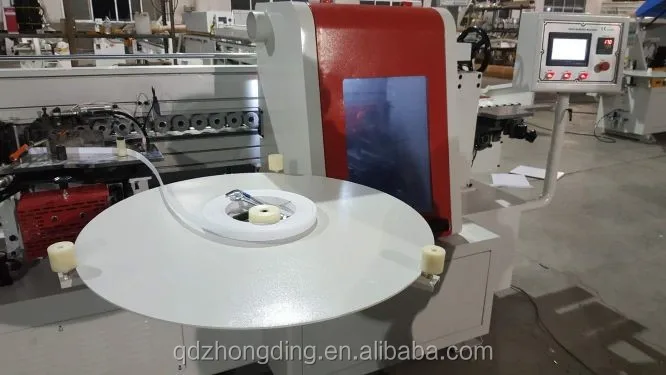

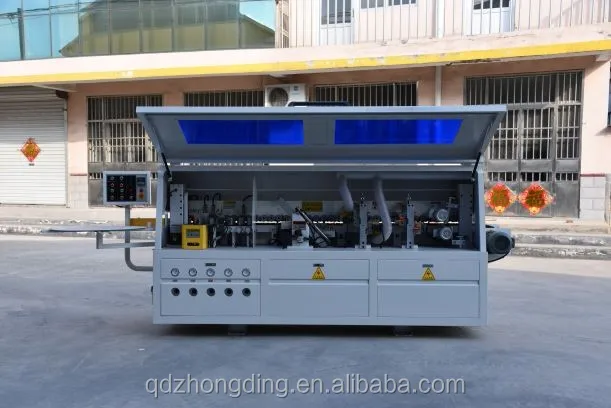

Detailed Image

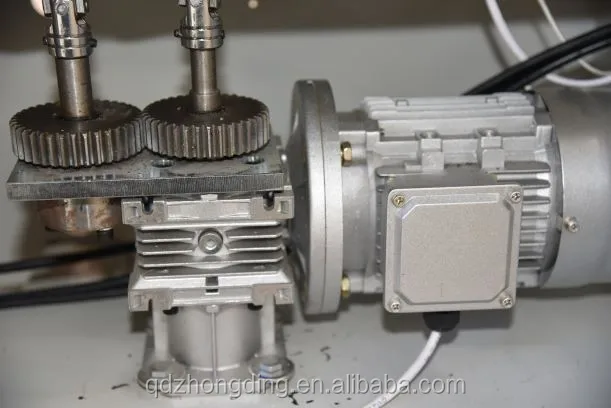

*   The glue mechanism adopts a special structure to gelatinze the plates and costing materials                           unifiormly,ensure a more solid conglutination.

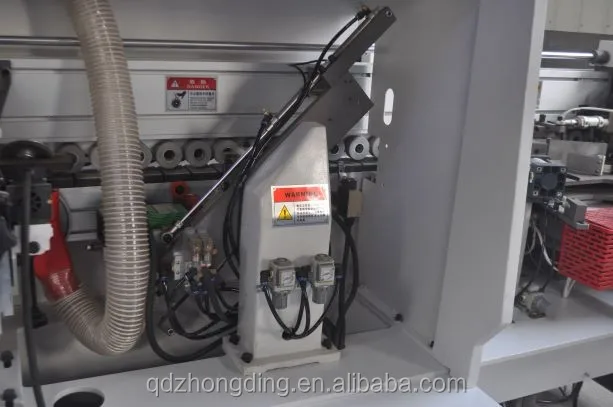

*   End trimming mechanism through a precise guide track movement,adopt automatic tracking and high           frequency motor fast cutting structure to ensure the cutting surface smoothly.

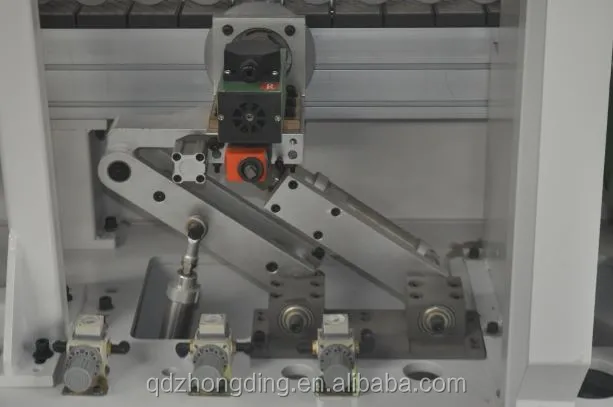

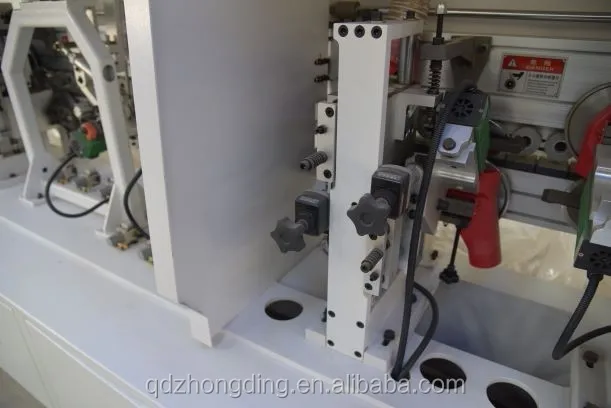

*   Rough/Fine trimming mechanism used for repairing the excess edge materials,adopt automatic tracking       to ensure the trimming plates smoothly.

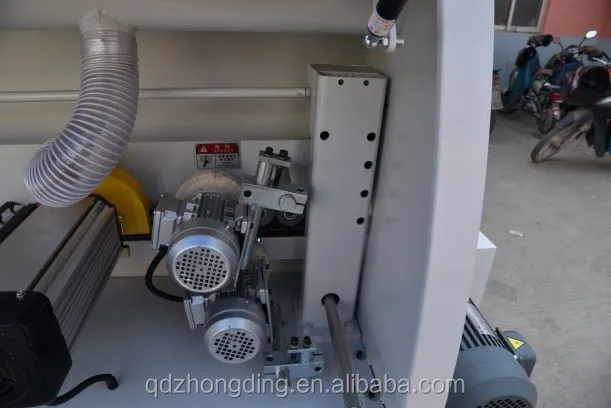

*   The buffing device adopts the board processed by cotton polishing wheel,by end polishing to make a             more smooth surface.

Exhibition
Certifications
Packing & Delivery

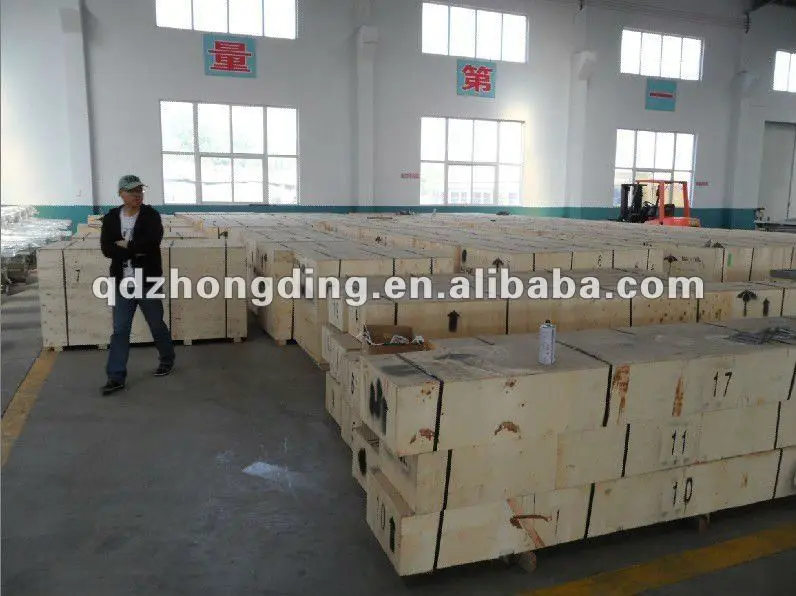

*  We use double protections:form paper inside and wood box outside,it is solid and steady during transportation.

*  Our company is located by the beachside of the Yellow sea and the Jiaozhou Gulf,which is very easy traffic of air,land,and sea transportation.

Contact us

If you are interested in our products,you can contact us :


Whatsapp:+8618363917191

Skype:+8618363917191

Or send inquiry in Alibaba
