MZB63A Three-randed Horizontal Vertical Drilling Machines for Wood

FOB Reference Price:Get Latest Price
$3,000.00 - $6,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
Report Suspicious Activity
Quick Details
Place of Origin:
Shandong, China
Brand Name:
1 Year
After-sales Service Provided:
Online support
The number of spindles:
Suitable voltage:
Maximum diameter of holes:
Total motor power:
Depth of drilled holes:
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
woodbox or what you want

MZB63A Three-randed Horizontal Vertical Drilling Machines for Wood

  • Three Heads Boring Machine are combined single horizontal and double sets of vertical boring units to upgrade working efficiency and reduce your production costs.
  • The vertical boring unit is set 90° for maximum boring position flexibility.
  • The mechanical switch provides convenient and accurate adjustment for boring depth and position.
  • Additional, optional automatic feeding equipment is available for upgrading working efficiency.
  • The speed stabilizer guarantees smooth feeding against the workpiece.
  • Quick chucks provide convenient fitting and dismantling for boring bits. This is a combined single horizontal and double vertical, high efficiency multiple head rows drilling machine.
  • Furthermore, the air-operated stoppers are convenient for repeat boring.

2. Technical Specifications


Maximum diameter of holes35mm
Depth of drilled holes0-60mm
The number of spindles63.00
Centerdistance between spindles32mm
Rotation of Spindle2840r/min
Total Motor Power4.5kw
Packing Size2600*1250*1650mm
Suitable Voltage~380v
Air Pressure0.5-0.8Mpa
Gas consumption for drilling ten panels per minute approximately20L/min Aproximately
Overall Size2500*2600*1600mm
Weight of the whole machine1260kg
High of working paltform off ground800mm
Max. distance of the two longitudinal heads1700mm


3. Detailed information

  • Suitable for all kinds of density boards, particleboard, based panels,PVC panels, organic glass plates and solid wood boards such as the drill
  • High-strength, reinforced the structure of the whole body of cast iron base. Vertical tank, horizontal seat, left and right panels, motors and other key parts of the base is also used in all cast iron

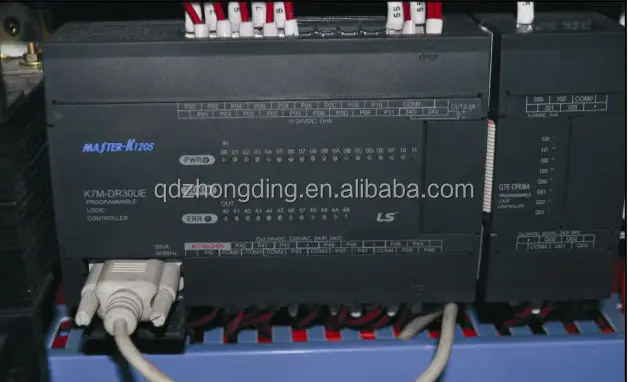

  • The use of high-precision guide rail and the slider staf Taiwan, Hongkong production drill row,omron appliances. LG brand of PLC microcomputer control system, making the equipment more stable, easier to operate.
  •  All models can be equipped with electronic digital devices in Italy.
  • P2 horizontal drilling part is flip structure, can be used for vertical drilling, horizontal drilling can also be.

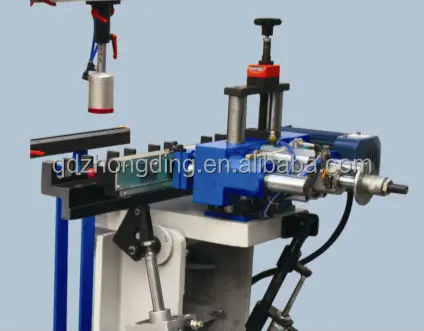

4. Other Photos


Our Services

(1) Pre-sale services:

* Provide the free consultation of the equipment .


* Provide the standard device and the flow chart.


* According to the clients’ special requirement, offering the reasonable plan and free design helping to select the equipment.


* Welcome to visit our factory.


(2)Services during the sales:


* Inspect the machine before leaving the factory.


* Oversea install and debug the equipment.


* Train the first-line operator.


(3)After sale services:


* 24 hours online service.


* Provide the VIDEO with Install and debug the equipment.


* Provide technical exchanging.

Company Information

    Qingdao Zhongding Machinery Co., Ltd is  professional at manufacturing woodworking machines. Our main products includes: sliding table saw(panel saw), edge banding machine, hydraulic cold press, carpenter drilling machine ( boring machine), etc. We are factory, we provide the machine with reasonable price and high quality, and welcome to visit our factory and our products.

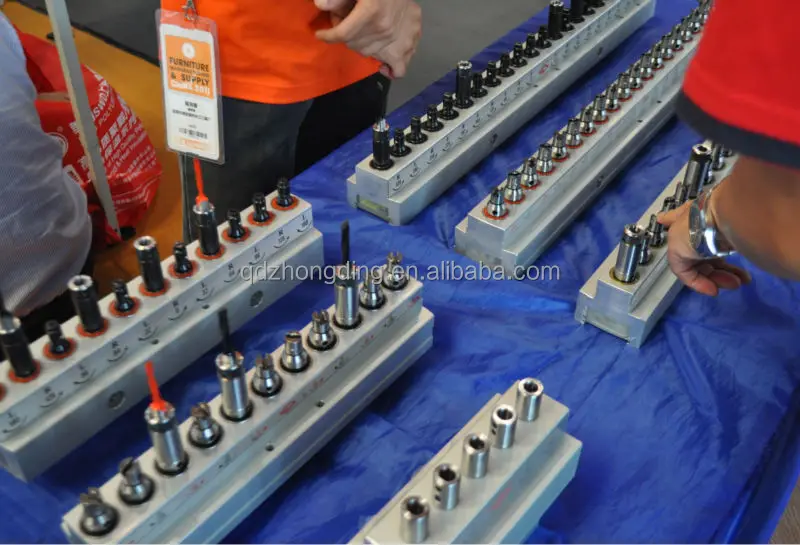

  The exhibition photos :


Payment: 30% deposit in advance, 70% balance before shipment.

Deliver time: within 30 days after deposit.

Payment method: L/C   T/T

Our port: Qingdao
